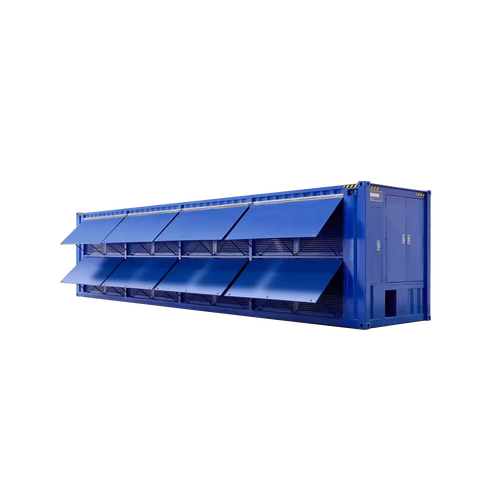

Air-Cooled Data Center Container

Contact us

WhatsApp: +86 15221042815 Please Click: [wa.me/8615221042815]

Telegram: +86 15221042815 Please Click: [t.me/JingleMiningCindy]

Email: cindy@jinglemining.com

Power Supply Specifications:

• Power Supply Type: Three-phase 380V/400V/415V/480V AC, 50Hz/60Hz, three-phase four-wire + PE
• Input Voltage: 380V/400V/415V/480V ±10%
• Input Current: Determined based on load requirements
• Total Input Lightning Protection: Class B, 8/20μs, In=30kA, Imax=60kA
• Distribution Cabinet: Equipped with an intelligent control system, supports remote monitoring; all components available with CE/UL/CSA certification
• Transformer: BK transformer, optional CE/UL/CSA certification
• Cabling and Cable Management: Top-mounted heavy-duty cable tray, all cables available with CE/UL/CSA certification
• Power Distribution: Customizable PDU socket quantity, overload protection, monitoring modules, all components available with CE/UL/CSA certification
• Backup Power: Optional, includes UPS and generator prefabricated units
• Emergency Lighting: Yes, equipped with LED emergency lights

Compatibility Parameters:

• Device Compatibility: Compatible with mainstream cryptocurrency mining equipment from brands such as Bitmain, Whatsminer, Avalon, and Innosilicon.
• Scalability: Modular design supporting future expansion and upgrades.
• Network Interface: Gigabit Ethernet interface, supporting both fiber optic and copper cable connections.
• Software Compatibility: Compatible with various monitoring and management software, featuring an open API interface.

Note: About the transportation of liquid cooling equipment
